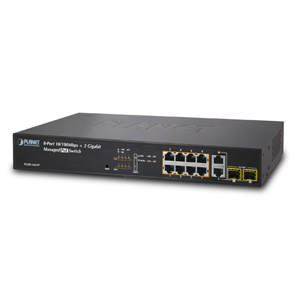

FGSD-1022P 8-Port 10/100Mbps + 2G TP / SFP Combo PoE Managed Switch

FGSD-1022P

8-Port 10/100Mbps + 2G TP / SFP Combo PoE Managed Switch

Subtype : Fast Ethernet
•10/100Mbps Copper Ports: 8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
•1000Mbps Copper Ports: 2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 1000Base-SX/LX/BX, shared with Port-9~Port-10
•Power Consumption : 200 Watts / 58.6 BTU
•PoE Standard : IEEE 802.3af Power over Ethernet / PSE
•Switch Architecture: Store-and-Forward
•Switch Fabric: 5.6 Gbps/non-blocking
•Switch Throughput@64 bytes: 4.16Mpps@64 bytes
•MAC Address Table: 8K entries
•Jumbo Frame: 9216 bytes
•Share Data Buffer: 512 Kbytes

Description

FGSD-1022P

8-Port 10/100Mbps + 2G TP / SFP Combo PoE Managed Switch

Subtype : Fast Ethernet
•10/100Mbps Copper Ports: 8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
•1000Mbps Copper Ports: 2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 1000Base-SX/LX/BX, shared with Port-9~Port-10
•Power Consumption : 200 Watts / 58.6 BTU
•PoE Standard : IEEE 802.3af Power over Ethernet / PSE
•Switch Architecture: Store-and-Forward
•Switch Fabric: 5.6 Gbps/non-blocking
•Switch Throughput@64 bytes: 4.16Mpps@64 bytes
•MAC Address Table: 8K entries
•Jumbo Frame: 9216 bytes
•Share Data Buffer: 512 Kbytes
•PoE Power Output Per port: Per Port 48V DC, 350mA . Max. 15.4 Watts
•PoE Power Budget: 180 Watts
•LED: Power (Green)
Link / Activity (Green)
PoE In-Use (Orange)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Orange)
•Flow Control: Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
•Dimensions (W x D x H): 330 x 155 x 43.5mm
•Enclosure: Metal
•Weight: 1.63kg
•Power Requirements: 100~240V AC, 50/60Hz
•PoE Power Pin Assignment: 1/2(+), 3/6(-)
Even port: 4/5(+), 7/8(-)
•Regulatory Compliance: FCC Part 15 Class A, CE
•Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3ad Port trunk with LCAP
IEEE 802.1D　Spanning tree protocol
IEEE 802.1s　Multiple spanning tree protocol
IEEE 802.1p　Class of service
IEEE 802.1Q　VLAN Tagging
IEEE 802.1x　Port Authentication Network Control
IEEE 802.3af　Power over Ethernet
RFC 768　UDP
RFC 793　TFTP
RFC 791　IP
RFC 792　ICMP
RFC 2068　HTTP
RFC 1112　IGMP version 1
RFC 2236　IGMP version 2
RFC 2236
•Operating: Temperature: 0 ~ 50 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
•Storage: Temperature: -10 ~ 70 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
