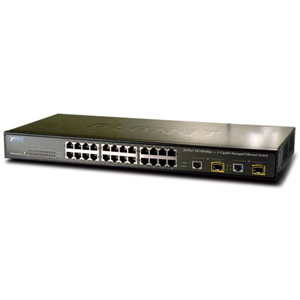

FGSW-2620VM 24-Port 10/100Mbps + 2 Gigabit TP/SFP Combo Managed Ethernet Switch

Description

FGSW-2620VM

24-Port 10/100Mbps + 2 Gigabit TP/SFP Combo Managed Ethernet Switch



•Subtype : Fast Ethernet
•10/100Mbps Copper Ports:  24   10 / 100Base-TX RJ-45 Auto-MDI / MDI-X ports
•1000Mbps Copper Ports:   2   10 / 100 / 1000Base-T RJ-45 port
•SFP/mini-GBIC Slots:   2   1000Base-SX/LX/BX SFP interfaces, shared with Port-25 and Port-26
•Power Consumption :  25 Watts (Full load)
•Power Requirement:  100~240V AC, 50-60 Hz
•Switch Architecture:  Store-and-Forward
•Switch Fabric:   8.8 Gbps/non-blocking
•Switch Throughput@64 bytes:   6.547Mpps@64 bytes
•MAC Address Table:   8K entries
•Maximum Frame Size:   9K Bytes
•Share Data Buffer:   512 Kbytes
•LED:
Power
Link / Activity (Green)
1000 LNK / ACT (Green)
10/100 LNK / ACT (Green)
•Flow Control:
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
•Dimensions (W x D x H): 440 x 120 x 44 mm, 1U height
•Enclosure: Metal
•Weight: 1.87kg
•VLAN:
Port-Based VLAN, up to 26 VLAN groups
IEEE 802.1q Tagged Based VLAN, up to 255 VLANs groups, out of 4041
VLAN IDs
Q-in-Q tunneling
•Operating:
Temperature: 0 ~ 50 degrees C
Relative Humidity: -40 ~ 70%
•Storage:
Temperature: -10 ~ 90 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
