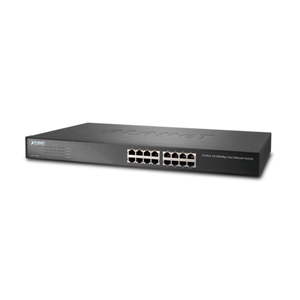

FNSW-1601-UK 16-Port 10/100Mbps  Fast Ethernet   Switch

16-Port 10/100Mbps  Fast Ethernet   Switch

The FNSW-1601 is a 16-Port 10/100Base-TX Fast Ethernet Switch that is a upgraded unit that combines energy efficiency and stable performance

• Ports:   16 Port 10/100TX
• Type of Switch:   Unmanaged
• Operating Temperature:   0 to 50°C
• Switch Fabric:   3.2Gbps
• Power Consumption:   Max. 1.3 W /  4.4 BTU
• Throughput:   2.38Mpps @ 64Bytes

Physical Port

• 16 10/100Mbps Fast Ethernet ports
• Supports auto MDI/MDI-X function

• Layer 2 Features
• Complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX Ethernet standards
• Supports powerful Green Ethernet to power saving
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Handles up to 1522 bytes packet size
• Complies with IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Integrated address look-up engine, supports 8K absolute MAC addresses
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Hardware Features
• 100~240V AC, 50~60Hz, 0.3A universal power input
• FCC, CE class A compliant
