•Subtype : Fast Ethernet
•Copper Ports: 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•Network Connector: 8-Port RJ45 for 10/100/1000Base-TX
•PoE Inject Port: 8-Port with PoE injector function(Port 1 to 8)
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 4K MAC address table with auto learning function
•Switch Fabric: 3.2Gbps
•Switch Throughput: 2.38Mpps@64Bytes
•Share Data Buffer: 2.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 1A.
•Power Consumption: Max.123 watts / 419.4 BTU
•Dimensions (W x D x H): 440 x 120 x 44 mm (1U Height)
•Weight: 1.75kg
•PoE Standard: IEEE 802.3af Power over Ethernet / PSE
•PoE Power Supply Type: End-Span
•PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
•Power Pin Assignment: 1/2(+), 3/6(-)
•PoE Power Budget: 110 watts
•VLAN: 16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
•Regulation Compliance: FCC Class B, CE
•Standard Compliance: IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3x: Full Duplex Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.1Q：VLAN
IEEE 802.1p：QoS
•Operating environment: 0 ~ 50 degrees C
•Storage environment: -40 ~ 70 degrees C
•Operating Humidity: 5 ~ 90%, relative humidity, non-condensing
•Storage Humidity: 5 ~ 90%, relative humidity, non-condensing

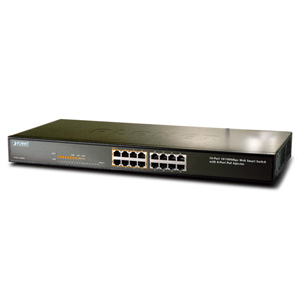

FNSW-1608PS 16-Port 10/100 Ethernet Web/Smart Switch with 8-Port 802.3af PoE Injector (110W)
FNSW-1608PS
16-Port 10/100 Ethernet Web/Smart Switch with 8-Port 802.3af PoE Injector (110W)
•Subtype : Fast Ethernet
•Copper Ports: 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•Network Connector: 8-Port RJ45 for 10/100/1000Base-TX
•PoE Inject Port: 8-Port with PoE injector function(Port 1 to 8)
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 4K MAC address table with auto learning function
•Switch Fabric: 3.2Gbps
•Switch Throughput: 2.38Mpps@64Bytes
•Share Data Buffer: 2.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 1A.
•Power Consumption: Max.123 watts / 419.4 BTU
Description
FNSW-1608PS
16-Port 10/100 Ethernet Web/Smart Switch with 8-Port 802.3af PoE Injector (110W)
•Subtype : Fast Ethernet
•Copper Ports: 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•Network Connector: 8-Port RJ45 for 10/100/1000Base-TX
•PoE Inject Port: 8-Port with PoE injector function(Port 1 to 8)
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 4K MAC address table with auto learning function
•Switch Fabric: 3.2Gbps
•Switch Throughput: 2.38Mpps@64Bytes
•Share Data Buffer: 2.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 1A.
•Power Consumption: Max.123 watts / 419.4 BTU
•Dimensions (W x D x H): 440 x 120 x 44 mm (1U Height)
•Weight: 1.75kg
•PoE Standard: IEEE 802.3af Power over Ethernet / PSE
•PoE Power Supply Type: End-Span
•PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
•Power Pin Assignment: 1/2(+), 3/6(-)
•PoE Power Budget: 110 watts
•VLAN: 16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
•Regulation Compliance: FCC Class B, CE
•Standard Compliance: IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3x: Full Duplex Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.1Q：VLAN
IEEE 802.1p：QoS
•Operating environment: 0 ~ 50 degrees C
•Storage environment: -40 ~ 70 degrees C
•Operating Humidity: 5 ~ 90%, relative humidity, non-condensing
•Storage Humidity: 5 ~ 90%, relative humidity, non-condensing
Details: https://planetechusa.com/fnsw-1608ps-16-port-10-100-ethernet-web-smart-switch-with-8-port-802-3af-poe-injector/
