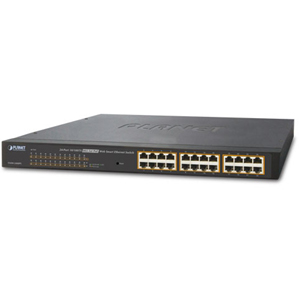

FNSW-2400PS 24-Port 10/100Mbps PoE Web Smart Ethernet Switch
FNSW-2400PS
24-Port 10/100Mbps PoE Web Smart Ethernet Switch
•Subtype : Fast Ethernet
•Copper Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•PoE Inject Port: 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 8K MAC address table with auto learning function
•Switch Fabric: 4.8Gbps
•Switch Throughput: 3.57Mpps@64Bytes
•Share Data Buffer: 1.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 2A max.
•Subtype : Fast Ethernet
•Copper Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•Network Connector:24 10/100Base-TX RJ-45 auto-MDI/MDI-X interfaces
•PoE Inject Port: 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
•LED Display:
*System : Power (Green)
*Per port : PoE (Orange)
LNK/ACT (Green)
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 8K MAC address table with auto learning function
•Switch Fabric: 4.8Gbps
•Switch Throughput: 3.57Mpps@64Bytes
•Share Data Buffer: 1.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 2A max.
•Power Consumption: Max.135 watts / 460 BTU
•Dimensions (W x D x H): 445 x 207 x 45 mm (1U height)
•Weight: 2.66kg
•PoE Standard: IEEE 802.3af Power over Ethernet
•PoE Power Supply Type: Mid-Span, PSE
•PoE Power Output: Per Port 48V DC, 350mA. max. 15.4 watts
•Power Pin Assignment: 4/5(-), 7/8(+)
•PoE Power Budget: 125 watts
•VLAN: 24 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
•Regulation Compliance: FCC Class B, CE
Standard Compliance: IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
•Operating environment: 0 ~ 50 degrees C
•Storage environment: -40 ~ 70 degrees C
•Operating Humidity: 5 ~ 95%, relative humidity, non-condensing
•Storage Humidity: 5 ~ 95%, relative humidity, non-condensing
FNSW-2400PS 24-Port 10/100Mbps PoE Web Smart Ethernet Switch
FNSW-2400PS
24-Port 10/100Mbps PoE Web Smart Ethernet Switch
•Subtype : Fast Ethernet
•Copper Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•PoE Inject Port: 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 8K MAC address table with auto learning function
•Switch Fabric: 4.8Gbps
•Switch Throughput: 3.57Mpps@64Bytes
•Share Data Buffer: 1.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 2A max.
Description
FNSW-2400PS
24-Port 10/100Mbps PoE Web Smart Ethernet Switch
•Subtype : Fast Ethernet
•Copper Ports: 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
•Network Connector:24 10/100Base-TX RJ-45 auto-MDI/MDI-X interfaces
•PoE Inject Port: 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
•LED Display:
*System : Power (Green)
*Per port : PoE (Orange)
LNK/ACT (Green)
•Switch Architecture: Store and Forward switch architecture
•MAC Address: 8K MAC address table with auto learning function
•Switch Fabric: 4.8Gbps
•Switch Throughput: 3.57Mpps@64Bytes
•Share Data Buffer: 1.75Mb embedded memory for packet buffers
•Power Requirements: AC 100~240V, 50/60Hz, 2A max.
•Power Consumption: Max.135 watts / 460 BTU
•Dimensions (W x D x H): 445 x 207 x 45 mm (1U height)
•Weight: 2.66kg
•PoE Standard: IEEE 802.3af Power over Ethernet
•PoE Power Supply Type: Mid-Span, PSE
•PoE Power Output: Per Port 48V DC, 350mA. max. 15.4 watts
•Power Pin Assignment: 4/5(-), 7/8(+)
•PoE Power Budget: 125 watts
•VLAN: 24 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
•Regulation Compliance: FCC Class B, CE
Standard Compliance: IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
•Operating environment: 0 ~ 50 degrees C
•Storage environment: -40 ~ 70 degrees C
•Operating Humidity: 5 ~ 95%, relative humidity, non-condensing
•Storage Humidity: 5 ~ 95%, relative humidity, non-condensing
Details: https://www.planet.com.tw/en/product/fnsw-2400ps
