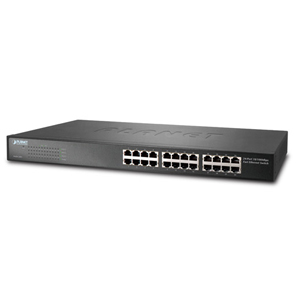

FNSW-2401-UK 24-Port 10/100Mbps Fast Ethernet Switch

FNSW-2401-UK

24-Port 10/100Mbps Fast Ethernet Switch



•Type of Switch: Unmanaged
•10/100Base-TX MDI/MDIX Ports: 24
•Throughput (packet per second): 3.57Mpps
•Switch Fabric: 4.8Gbps
•Power Consumption / Dissipation: 4 watts / 13 BTU
•Power Requirements: 100~240V AC, 50/60Hz, 0.3A
•Address Table: 8K entries
•Packet Buffer: 2Mbit SRAM

Categories: , ,

Description

FNSW-2401-UK

24-Port 10/100Mbps Fast Ethernet Switch



•Type of Switch: Unmanaged
•10/100Base-TX MDI/MDIX Ports: 24
•Throughput (packet per second): 3.57Mpps
•Switch Fabric: 4.8Gbps
•Power Consumption / Dissipation: 4 watts / 13 BTU
•Power Requirements: 100~240V AC, 50/60Hz, 0.3A
•Address Table: 8K entries
•Packet Buffer: 2Mbit SRAM
•Dimensions (W x D x H): 440 x 180 x 44mm, 1U height
•Switch Processing Scheme: Store-and-Forward
•Power Green Ethernet: 10m ~ 50m: Saving up to 12%
•Weight: 1.7kg
•Flow Control:
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
•Temperature:
Operating: 0~50 degrees C
Storage: -10~70 degrees C
•Humidity:
Operating: 5% to 95%,
Storage: 5% to 95% (Non-condensing)



Details: https://planetechusa.com/fnsw-2401-24-port-10-100mbps-fast-ethernet-switch/
