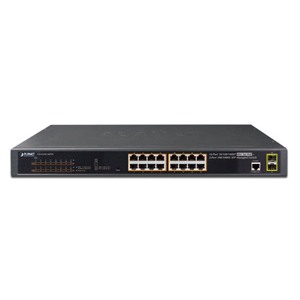

GS-4210-16P2S  16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch

Description

 GS-4210-16P2S

 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch



•Copper Ports:  16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
•SFP/mini-GBIC Slots:  2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
•PoE Injector Port:  16 ports with 802.3af/at PoE injector function
•Console:  1 RJ45-to-RS232 serial port (115200, 8, N, 1)
•Switch Architecture: Store-and-Forward
•Switch Fabric:  36Gbps/non-blocking
•Switch Throughput:  26.78Mpps@64 bytes
•MAC Address Table:  8K entries
•Shared Data Buffer:  4Mbits
•PoE Power Output:  Per Port 53V DC, 30.8 watts (max.)
•PoE Power Budget:  220 watts (max.)
•Jumbo Frame:  9K bytes
•Power Requirements:  100~240V AC, 50/60Hz, 4A (max.)
•Power Consumption/Dissipation:  Max. 281 watts/964 BTU
•Dimensions (W x D x H): 445 x 207 x 45 mm (1U height)
•Flow Control:
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
•Weight:  2.8kg
•PoE Standard:  IEEE 802.3at Power over Ethernet Plus/PSE
•PoE Power Supply Type:  End-span
•VLAN:
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
GVRP
•Operating:
Temperature:  0 ~ 50 degrees C
Relative Humidity:  5 ~ 95% (non-condensing)
•Storage:
Temperature:  -10 ~ 70 degrees C
Relative Humidity:  5 ~ 95% (non-condensing)



Detail: https://www.planet.com.tw/en/product/gs-4210-16p2s
