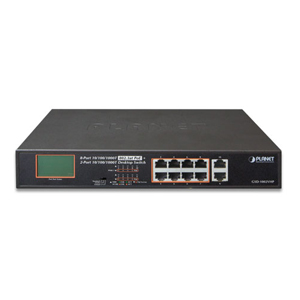

GSD-1002VHP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch with LCD PoE Monitor (120 Watts)

Description

GSD-1002VHP

8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch with LCD PoE Monitor (120 Watts)



•10/100/100BASE-T MDI/MDIX Ports: 10
•PoE Injector Port: 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
•Switch Throughput: 14.88Mpps @64Bytes
•Switch Fabric: 20Gbps / non-blocking
• Address Table: 8K entries
• Maximum Frame Size: 9K Bytes
• Shared Data Buffer: 512 Kbytes
•Switch Architecture: Store and Forward switch architecture
•Power Requirement: AC 100~240V, 50/60Hz, 2.5A max.
•Power Consumption: 135 Watts maximum / 463.2 BTU/hr maximum
•Auto Detect: Yes, Auto detect powered device (PD)
•LED Display:
System:
Power (Green)
10/100/1000BASE-T RJ45 Interfaces:
10/100Mbps LNK/ACT (Orange)
1000Mbps LNK/ACT ((Green)
PoE interfaces:
PoE-in-Use (Orange)
•Dimension (W x D x H): 180 x 280 x 44 mm, 1U height
•Weight: 1.8kg
•Operating:
Temperature: 0 ~ 50 Degree C
Relative Humidity: 5% ~ 95%(Non Condensing)
•Storage:
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

•PoE Standard:
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE

•PoE Power Supply Type: End-Span
•PoE Power Output: Per port 52V DC, 600mA. max. 30 watts
•Power Pin Assignments: 1/2(+), 3/6(-)
•PoE Power Budget: 120 Watts, Supports PoE Power up to 15.4 Watts for each PoE port
•Regulation Compliance: FCC Part 15 Class A, CE

•Standards Compliance:
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)



Details: https://www.planet.com.tw/en/product/gsd-1002vhp
