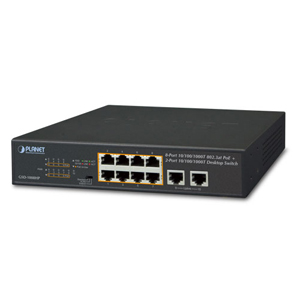

GSD-1008HP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts)

Description

GSD-1008HP

8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 watts)



•Copper Ports: 10 10/100/1000BASE-T MDI/MDIX Ports
•PoE Injector Port: 8-port with 802.3at/af PoE injector function with Port-1 to Port-8
•Switch Throughput: 14.88Mpps @64Bytes
•Switch Fabric: 20Gbps / non-blocking
• Address Table: 8K entries, automatic source address learning and aging
• Maximum Frame Size: 9K Bytes
• Shared Data Buffer: 512 Kbytes
•Switch Architecture: Store and Forward switch architecture
•Power Requirement: AC 100~240V, 50/60Hz, 2.5A max.
•Power Consumption:
System On: Max. 5.6 watts/19.1 BTU
Ethernet Full Loading: Max. 10.6 watts/36.1 BTU
PoE Full Loading: Max. 139 watts/474.2 BTU
•Auto Detect: Yes, Auto detect powered device (PD)
•LED Display:
System:
Power (Green)
10/100/1000BASE-T RJ45 interfaces:
10/100Mbps LNK/ACT (Red)
1000Mbps LNK/ACT (Green)
PoE interfaces:
PoE-in-Use (Orange)

•Dimension (W x D x H): 220 x 150 x 43 mm, 1U height
•Weight: 1260g
•Operating:
Temperature: 0 ~ 50 Degree C
Relative Humidity: 5% ~ 95%(Non Condensing)
•Storage:
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

•PoE Standard:
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE

•PoE Power Supply Type: End-Span
•PoE Power Output: Per port 55V DC, 540mA. max. 30 watts
•Power Pin Assignments: 1/2(+), 3/6(-)
•PoE Power Budget: 120 Watts
•Regulation Compliance: FCC Part 15 Class A, CE

•Standards Compliance:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
