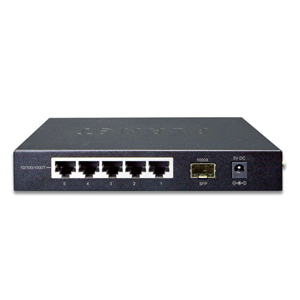

GSD-603F 5-Port 10/100/1000BASE-T + 1-Port 1000BASE-X SFP Gigabit Ethernet Switch

SD-603F
5-Port 10/100/1000BASE-T + 1-Port 1000BASE-X SFP Gigabit Ethernet Switch



•Ports: 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
•SFP/mini-GBIC Slot: 1 1000BASE-X
•Switch Processing Scheme: Store-and-Forward
•Address Table: 2K entries
•Shared Data Buffer: 1.5Mbits
•Switch Fabric: 12Gbps
•Throughput (packet per second): 8.9Mpps
•Jumbo Packet Size: 9K
•Power Requirement: DC 5V, 1A external power
•Power Consumption:
System on: Max. 0.6 watts/2.04 BTU @ DC 5V
Ethernet Full Loading: Max. 4.1 watts/13.99 BTU @ DC 5V

Categories: , ,

Description

GSD-603F
5-Port 10/100/1000BASE-T + 1-Port 1000BASE-X SFP Gigabit Ethernet Switch



•Ports: 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
•SFP/mini-GBIC Slot: 1 1000BASE-X
•Switch Processing Scheme: Store-and-Forward
•Address Table: 2K entries
•Shared Data Buffer: 1.5Mbits
•Switch Fabric: 12Gbps
•Throughput (packet per second): 8.9Mpps
•Jumbo Packet Size: 9K
•Power Requirement: DC 5V, 1A external power
•Power Consumption:
System on: Max. 0.6 watts/2.04 BTU @ DC 5V
Ethernet Full Loading: Max. 4.1 watts/13.99 BTU @ DC 5V
•Dimension (W x D x H): 162 x 102 x 28 mm
•Weight: 398g
•Flow Control:
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
•Enclosure: Metal
•Temperature
Operating: 0~50 degrees C
Storage: -40~70 degrees C
•Humidity:
Operating: 10~90% (non-condensing)
Storage: 5~90% (non-condensing)



Details: https://www.planet.com.tw/en/product/gsd-603f
