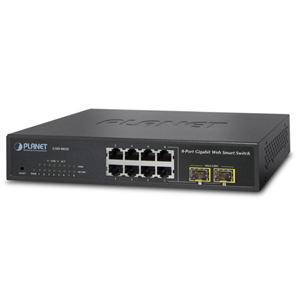

GSD-802S 8-Port 10/100/1000Mbps with 2 shared SFP Web Smart Gigabit Switch

GSD-802S
8-Port 10/100/1000Mbps with 2 shared SFP Web Smart Gigabit Switch



•Copper Ports: 8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 SFP interfaces, shared with Port-7 and Port-8
•Switch Architecture: Store-and-Forward
•Switch Fabric 16Gbps / non-blocking
•Switch Throughput@64Bytes: 11.9Mpps
•Address Table: 8K entries
•Shared Data Buffer: 176K Bytes
•Flow Control: IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
•Jumbo Frame: 9K bytes

Categories: , ,

Description

GSD-802S
8-Port 10/100/1000Mbps with 2 shared SFP Web Smart Gigabit Switch



•Copper Ports: 8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 SFP interfaces, shared with Port-7 and Port-8
•Switch Architecture: Store-and-Forward
•Switch Fabric 16Gbps / non-blocking
•Switch Throughput@64Bytes: 11.9Mpps
•Address Table: 8K entries
•Shared Data Buffer: 176K Bytes
•Flow Control: IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
•Jumbo Frame: 9K bytes
•LED System:Power, 1000 Link/Act, 100/10 Link/Act per port
•Power Requirements: 100V ~ 240V AC, 50/60Hz
•ESD Protection: 6KV DC
•Power Consumption / Dissipation: 8.7 watts / 27.31 BTU/hr
•Dimensions (W x D x H) 217 x 135 x 43.5 mm
•Weight: 1.1kg
•VLAN Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups
•Enclosure: Metal



Details: http://dotcom-sys.com/index.php/planet/lan-switches/web-smart-ethernet-switch/86-gsd-802s#overview
