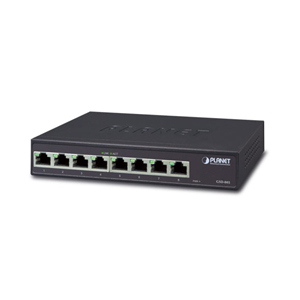

GSD-805 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch

8-Port 10/100/1000BASE-T Gigabit Ethernet Switch

 RJ45 Interface

• 8 10/100/1000Mbps Gigabit Ethernet ports
• Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
• Supports auto MDI/MDI-X function

Switching

• Hardware-based 10/100Mbps in half / full duplex mode and 1000Mbps in full duplex mode, flow control, and auto-negotiation
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
• Integrated address look-up engine, supporting 8K absolute MAC addresses
• 9K jumbo packet size
• Automatic address learning and address aging
• Supports VLAN isolation mode
• Supports CSMA/CD protocol

Hardware

• Metal housing, desktop size and wall-mount design
• LED indicators for system power, Link / Act port
• Internal power adapter 100-240V AC, 50/60Hz, 0.2A
• FCC, CE Class B compliant
