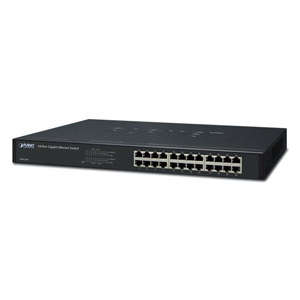

GSW-2401 24-Port 10/100/1000Mbps Gigabit Ethernet Switch

GSW-2401

24-Port 10/100/1000Mbps Gigabit Ethernet Switch



•Type of Switch: Unmanaged
•10/100Base-TX MDI/MDIX Ports: 24
•Throughput (packet per second): 35.7Mpps
•Switch Fabric: 48Gbps
•Power Consumption / Dissipation: 13.5 watts/46 BTU
•Power Requirements: 100~240V AC, 50/60Hz, 0.6A
•Address Table: 8K entries
•Jumbo Packet Size: 10K
•Dimensions (W x D x H): 440 x 180 x 44mm, 1U height

Categories: , ,

Description

GSW-2401

24-Port 10/100/1000Mbps Gigabit Ethernet Switch



•Type of Switch: Unmanaged
•10/100Base-TX MDI/MDIX Ports: 24
•Throughput (packet per second): 35.7Mpps
•Switch Fabric: 48Gbps
•Power Consumption / Dissipation: 13.5 watts/46 BTU
•Power Requirements: 100~240V AC, 50/60Hz, 0.6A
•Address Table: 8K entries
•Jumbo Packet Size: 10K
•Dimensions (W x D x H): 440 x 180 x 44mm, 1U height
•Switch Processing Scheme: Store-and-Forward
•Power Green Ethernet: 10m ~ 50m: Saving up to 12%
•Weight: 1.9kg
•Flow Control:
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
•Temperature:
Operating: 0~50 degrees C
Storage: -10~70 degrees C
•Humidity:
Operating: 5% to 95%,
Storage: 5% to 95% (Non-condensing)



Details: https://www.planet.com.tw/en/product/gsw-2401
