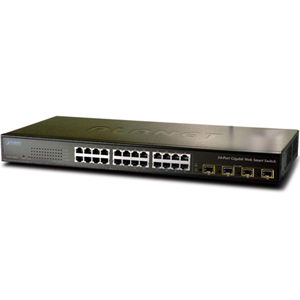

GSW-2404SF 24-Port Web Smart Gigabit Ethernet Switch with 4 Shared SFP

GSW-2404SF
24-Port Web Smart Gigabit Ethernet Switch with 4 Shared SFP



•Copper Ports: 24 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 4, shared with Port-21~Port-24, 100Base-FX / 1000Base-SX/LX Dual mode
•Switch Architecture: Store-and-Forward
•Switch Fabric 48Gbps / non-blocking
•Switch Throughput@64Bytes: 35.7Mpps
•Address Table: 8K entries
•Shared Data Buffer: 500K Bytes
•Flow Control: Back pressure for Half-Duplex ,IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for half-duplex
•Jumbo Frame: 9K bytes

Categories: , ,

Description

GSW-2404SF
24-Port Web Smart Gigabit Ethernet Switch with 4 Shared SFP



•Copper Ports: 24 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 4, shared with Port-21~Port-24, 100Base-FX / 1000Base-SX/LX Dual mode
•Switch Architecture: Store-and-Forward
•Switch Fabric 48Gbps / non-blocking
•Switch Throughput@64Bytes: 35.7Mpps
•Address Table: 8K entries
•Shared Data Buffer: 500K Bytes
•Flow Control: Back pressure for Half-Duplex ,IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for half-duplex
•Jumbo Frame: 9K bytes
•LED System:Power, 1000 Link/Act, 100/10 Link/Act per port
•Power Requirements: 100V ~ 240V AC, 50/60Hz , 1A
•ESD Protection: 6KV DC
•Power Consumption / Dissipation: 26 watts / 88 BTU/hr
•Dimensions (W x D x H) 440x120x44 mm
•Weight: 1.67kg
•VLAN: Port-Based VLAN / IEEE 802.1Q Tagged Based VLAN , up to 256 VLAN groups
•Enclosure: Metal



Details: http://planet.com.tw/en/product/product.php?id=30624#ov
