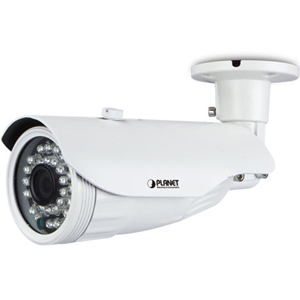

ICA-3250 1080p IR Bullet PoE IP Camera

ICA-3250
1080p IR Bullet PoE IP Camera

•Image device: 1/2.8″ 2 mega-pixel Sony Exmor progressive scan CMOS sensor
•Lens:
Fixed lens 3.6mm, F1.2
Angle of view:
Horizontal: 74 degrees
Vertical: 55 degrees
•Min. Illumination:
0.01 lux (color) @ F1.2
0 lux (B/W) @ IR on
•IR Illuminations:
IR LED x 30, 850nm
Built-in IR illuminators, effective up to 25 meters
*The IR distance is based on the environment.
•Effective Pixels: 1920 x 1080 pixels
•Video Compression: H.264
•Video Resolution: 1080p, 960p, 720p, 720 x 576, 640 x 480, 352 x 288, 320 x 240, 176 x 144
•Frame Rate: Up to 30fps for all resolutions

Description

ICA-3250
1080p IR Bullet PoE IP Camera

•Image device: 1/2.8″ 2 megapixel Sony Exmor progressive scan CMOS sensor
•Lens:
Fixed lens 3.6mm, F1.2
Angle of view:
Horizontal: 74 degrees
Vertical: 55 degrees
•Min. Illumination:
0.01 lux (color) @ F1.2
0 lux (B/W) @ IR on
•IR Illuminations:
IR LED x 30, 850nm
Built-in IR illuminators, effective up to 25 meters
*The IR distance is based on the environment.
•Effective Pixels: 1920 x 1080 pixels
•Video Compression: H.264
•Video Resolution: 1080p, 960p, 720p, 720 x 576, 640 x 480, 352 x 288, 320 x 240, 176 x 144
•Frame Rate: Up to 30fps for all resolutions
•Bitrate: 1024~8000kbps
•Shutter Time: 1/25~1/10000 sec
•Image Setting:
2D noise reduction
WDR
Brightness, saturation, contrast
Mirror/Rotate
Privacy mask (4 regions)
Text, time and date overlay
•Streaming:
Simultaneous multi-profile streaming
Streaming over HTTP or RTSP
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
•Audio Streaming: Two-way audio
•Audio Compression: G.711 (A-law and µ-law)
•Audio Input: Cable with RCA jack
•Audio Output: Cable with RCA jack
•Standard:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
•Protocol: IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, PLANET DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP
•Security: Password protection
•Users: 3 clients on-line monitoring at the same time
•Application Programming Interface: ONVIF compliant
•Alarm Triggering: Motion detection
•Alarm Events:
Event snapshot upload via FTP
Notification via email, and HTTP
•Power Requirements:
12V DC, 1A
IEEE 802.3af Class 3
•Power Consumption: 8W (IR on)
•Weight: 440g
•Dimensions (Φ x L): 63.5 x 136 mm
•Emission: CE, FCC
•Connectors:
10/100Mbps Ethernet, RJ45
DC power jack
RCA audio in (white ) and RCA audio out (red)
•Cold Boot Temperature: -10 ~ 50 degrees C
•Operating Temperature: -10 ~ 50 degrees C
•Operating Humidity: 20 ~ 80% (non-condensing)
