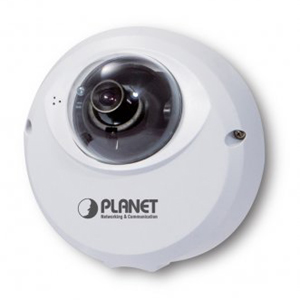

ICA-HM131 H.264 Full-HD camera

ICA-HM131
H.264 Full-HD camera

• Sensor 1 / 2.7 “progressive CMOS
• Multi profile encoder supporting H.264 and M-JPEG compression simultaneously
• Supports 1080p Full-HD resolution (1920 x 1080 pixels)
• IEEE 802.3af PoE power handling
• 3GPP technology for 3G mobile applications
• Built-in microphone
• Supports Micro SD memory cards
• Easy configuration through software based on Windows or • via a network interface
• Support for DDNS, PPPoE and FTP upload increases the flexibility of the device and the capabilities of the surveillance network
• Motion detection: the camera can monitor movement in a specific area of observation
Cam Viewer Plus software

Description

ICA-HM131
H.264 Full-HD camera

•Sensor: 1 / 2.7 “Progressive CMOS
•Lens: 4 mm, F1.5
•Minimal lighting: 0.2 Lux @ F1.2
•Viewing angles: 66/52 degrees
•Video coding: H.264 / M-JPEG
•Scanning: Progressive
•Compression: VBR (Variable Bit Rate)
•Frames per second:
15fps for 1080p
30fps for others
•Resolution:
H.264 1080p / 720p
M-JPEG 1080p / 720p / D1 / CIF
•Image control: AWB, AES
•Audio codecs: G.711, G.726
•Outputs: Built-in microphone
•Network interface: 1 x RJ-45
•Protocols:TCP / IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, IGMP
•standards: IEEE 802.3 / IEEE 802.3u
•Browser: Microsoft® Internet Explorer 6.0 or later
•Motion detection: 10 defined areas
•Dimensions: 110 x 50 mm
•Weight: 180g
•Power: IEEE 802.3af
•Energy consumption: 3.8W max.
•Temperature: Work: 0 ~ 50 degrees C
•Humidity: Work: 10-90% (without condensation)
