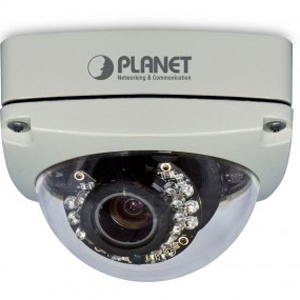

ICA-HM136 H.264 2 megapixel IR camera with backlight up to 15m

ICA-HM136
H.264 2 megapixel IR camera with backlight up to 15m

•2 Mega-Pixel CMOS image sensor
•Supports H.264, MPEG-4 and M-JPEG video compression
•IP-66 protection for outdoor application
•IR-Cut filter brings better video quality both in the daytime and nighttime
•DDNS, PPPoE and FTP uploading offers more alternatives in surveillance network
•Supports 2-way audio with an external speaker and microphone
•3GPP and Java technology for 3G mobile applications
•Motion detection: the camera can monitor movement in a specific area of observation

Description

ICA-HM136
H.264 2 megapixel IR camera with backlight up to 15m

•sensor: CMOS 2M pixels
•Lens: The focal length is 2.7 ~ 9mm
•Minimal lighting: 0.5 Lux
•Viewing angles: Level: 30.4-101 degrees / Division: 23-75 degrees
•LEDs: High light IR LED x 18pcs
•IR wavelength: 850nm
•Lighting range: 15m
•Coding: H.264 / MPEG-4 / M-JPEG
•Compression: VBR (Variable Bit Rate), CBR (Constant Bit Rate)
•Frames per second:
Mega Pixel up to 15 fps for all resolutions
VGA up to 30 fps for VGA / QVGA / QQVGA
•Resolution:
H.264 UXGA / 720p / SXGA / VGA / QVGA / QCIF
M-JPEG UXGA / 720p / SXGA / VGA / QVGA
MPEG4 QCIF (for 3GPP)
•Frames per second:
UXGA up to 15fps
SXGA up to 22fps
HD-720p / SVGA / VGA / QVGA / QCIF to 30fps
•Image control: Brightness, contrast, sharpness, AGC, BLC, night text mode, date and time stamping
•Audio codec: G.711 / AMR
•Audio I / O:
Audio IN: external microphone
Audio OUT: external speaker
•outputs: Jack
•streaming: One or two-way
•Network interface: 1 x RJ-45
•protocols: TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
•standards: IEEE 802.3 / IEEE 802.3u / IEEE 802.3af
•Browser / Software: Microsoft® Internet Explorer 6.0 or later / Cam Viewer 3 Lite / Pro
•Motion detection:3 defined areas
•Enclosure class: IP-66
•Dimensions: 126 x 100 x 126 mm
•Weight: 835g
•Power: 12V DC, 1A, IEEE 802.3af
•Power consumption: 500mA max (IR LED included)
•Temperature Work: -20 ~ 50 degrees Celsius
•Humidity Work: 20-80% (without condensation)
