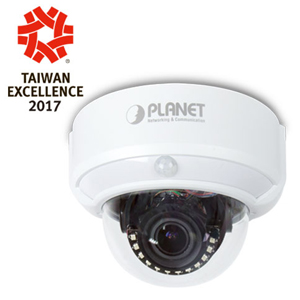

ICA-M4320P 3 Megapixel IR IP Camera with Remote Focus and Zoom

ICA-M4320P
3 Megapixel IR IP Camera with Remote Focus and Zoom

1/2.8″ Sony Exmor progressive scan CMOS sensor
2.8~12 mm vari-focal, P-Iris lens
Smart Focus for remote and precise focus adjustment
0.01 lux minimum illumination at F1.2
12 built-in IR illuminators, effective up to 20 meters
Built-in PIR sensor (covering 6m wide and an obtuse angle of 120 degrees) for thermal and motion detection
Removable IR-cut filter for Day & Night function
Simultaneous H.264/M-JPEG video compression
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. resolution of 2048 x 1536 at 30fps

Description

ICA-M4320P
3 Megapixel IR IP Camera with Remote Focus and Zoom

1/2.8″ Sony Exmor progressive scan CMOS sensor
2.8~12 mm vari-focal, P-Iris lens
Smart Focus for remote and precise focus adjustment
0.01 lux minimum illumination at F1.2
12 built-in IR illuminators, effective up to 20 meters
Built-in PIR sensor (covering 6m wide and an obtuse angle of 120 degrees) for thermal and motion detection
Removable IR-cut filter for Day & Night function
Simultaneous H.264/M-JPEG video compression
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. resolution of 2048 x 1536 at 30fps
3DNR to improve picture quality at low lux
True WDR enhancement function strengthens visibility under extremely bright or dark environments
Two-way audio support with enhanced audio quality
Compliant with IEEE 802.3af PoE interface for flexible deployment
RTSP, FTP and PLANET DDNS protocols selectable
ONVIF compliant for interoperability
Intelligent motion, tampering, audio detection alarm
Digital Input/Output for integration with sensors and alarms
Easy configuration and management via Windows-based utility or web interface
•Video Resolution: 2048 x 1536, 1080p, 960p, 720p, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180
•Frame Rate: Up to 30fps for all resolutions
Bitrate : 1024~20000 kbps
Shutter Time : 1/5~1/10000 sec
Audio Compression : RTSP: G.711/G.726
Protocol : IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, PLANET DDNS, DHCP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, Samba, SNMP, QoS, IEEE 802.1x
Users : On-line monitoring of 20 clients at the same time
Power Requirements :
12V DC, 1A
IEEE 802.3af Class 3
Power Consumption :
10W with IR on (12V DC)
10W with IR on (PoE)
Weight : 530g
Dimensions (Φ x L) : 152 x 109 mm
Cold Boot Temperature -20 ~ 50 degrees C
Operating Temperature -30 ~ 50 degrees C
Operating Humidity 20 ~ 80% (non-condensing)
