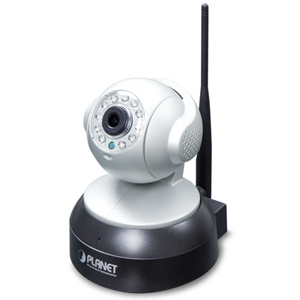

ICA-W7100 720P Wireless IR PT IP Camera

Description

ICA-W7100
720P Wireless IR PT IP Camera

•sensor: 1/4″ 1mega-pixel CMOS image sensor
•Lens:
Fixed lens 3.6mm, F1.4
Angle of view:
Horizontal: 75 degrees
Vertical: 55 degrees
•Effective Pixels: 1280 x 720
•Minimal lighting:
Color: 0.1 lux @ F1.2
B/W: 0 lux (IR on)
•Viewing angles:
Angle of Pan-0~355 degrees
Angle of Tilt-0~90 degrees
•LEDs:
Built-in IR LED x 11, effective up to 10 meters
*The IR distance is based on the environment
•IR wavelength: 850nm
•Lighting range: 10m
•Coding: H.264
•Resolution:
Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480
Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144
MPEG4 QCIF (for 3G)
•Frames per second: Up to 30fps for all resolutions
•Image control:
2D noise reduction
Color, brightness, contrast
Mirror / Rotate
4 privacy masks
Text, time and date overlay
•Streaming :
Simultaneous multi-streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate
•Audio Streaming : 2-way audio
•Audio Compression: PCM, G.711ALAW, G.711ULAW
Audio IN: external microphone
Audio OUT: Adjustable audio output gain
•Network Standard:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.11 b/g/n
•Netwrok protocols: IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X
•Antenna Connector: RP-SMA Female
•Frequency: 2.4GHz
•RF Transmit Power:
802.11b mode: 20 dbm
802.11g mode: 17 dbm
802.11n mode: 17 dbm
•RF Receiver Sensitivity:
802.11b (11Mbps): -85dbm
802.11g (54Mbps): -68dbm
802.11n (20MHz): -68dbm
802.11n (40MHz): -68dbm
•RF Data Rate:
802.11b: 11Mbps
802.11g: 54Mbps
802.11n (20MHz): up to 72Mbps
802.11n (40MHz): up to 150Mbps
•Dimensions (Φ x H): 132 x 108 mm
•Weight: 564g
•Power: 12V DC, 1A, IEEE 802.3af
•Power consumption: 510mA max (IR LED included)
•Temperature: Work: 0 ~ 50 degrees C
•Humidity: Work: 20-80% (without condensation)
•Certifications: CE, FCC
•Security: Password protection; WEP, WPA-PSK and WPA2-PSK encryptions
•Users: 2 clients on-line monitoring at the same time
•Application Programming Interface: ONVIF compliant
•Alarm Triggering:
Motion Detection
External Input
•Power Requirements: 5V DC, 10W max.
•Power Consumption: Up to 7.8W (IR & PT on)
•Operating Temperature: -10 ~ 50 degrees C
•Operating Humidity: 20 ~ 85% (non-condensing)
•Dimensions (W x D x H): 103 x 106 x 131mm
•Weight: 305g
•Connectors:
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio out
MicroSD/SDHC card (max 32GB)
Factory default reset
