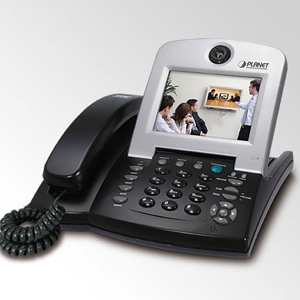

ICF- 1601 Internet Video Conferencing Phone

Description

ICF- 1601
Internet Video Conferencing Phone



•Port: 2 x 10/100Mbps RJ-45 ports
•Camera: CMOS module, 300K pixels QCIF, 30fps
•USB: 1 USB 2.0 ( For connecting with USB flash disk)
•Audio / Video Input:
1 telephone handset
1 built-in microphone
•Audio / Video Output
1 built-in 5” TFT LCD, angle adjustable
1 pair RCA Audio/Video output
1 built-in speaker
•Standard: SIP2.0 (RFC 3261), and supports Outbound Proxy Configuration
•Video Standard: H.263, H.264
•Audio Standard: G.711a/u and G.729A/B
•Internet protocol: TCP/IP, UDP, RTP/RTCP
•Echo cancellation: G.167
•LAN standard
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
•Access Mode: Static IP, DHCP and PPPoE
•Keys:
1 Speakerphone Key
1 Volume Up & Down keys
1 Conference key
1 Hold key
1 Mute key
1 Redial key
1 Privacy key
1 Setting key
1 Mail key
1 Phone book key
12 Numerical keys
•Audio Features:
Silence Suppression
Comfort noise generation(CNG)
In-band DTMF & Out-of-band DTMF (RFC 2833)
Call progress tone generation
Acoustic Echo Cancellation
Dynamic Jitter buffer
Three-way audio conferencing
•Video Features:
2-Way Video Call
PIP(Picture in Picture)
LCD Brightness Adjustment
LCD Contrast Adjustment
LCD/TV Display Switch
Video Privacy (Audio Only)
Video Mute
Remote Video Display On/Off
•Message & Configuration Service:
Address Book
Phone setting
Network setting
Call records
Local Clock setting
Digital Photo Frame
•Access Mode: Static IP, DHCP and PPPoE
•Management: LCD GUI
•Dimension (W x D x H): 216 x 206 x 180 mm
•Operating Environment: 0°~50 Degree C, 10~85% humidity
•Power Requirement: 12V DC, 1.5A
•EMC / EMI: FCC, CE Class B
