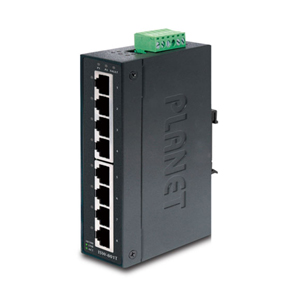

ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch

8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)

Physical Port

• 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
• Supports auto-negotiation and 10/100Mbps half/full duplex mode
• High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (switching fabric): 1.6Gbps
• Integrated address look-up engine, supporting 1K absolute MAC addresses
• Automatic address learning and address aging

Industrial Case & Installation

• IP30-rated metal case
• DIN rail and wall-mount design
• 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support
• Lower Power Consumption device in full load operation mode
• Supports EFT protection for 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
