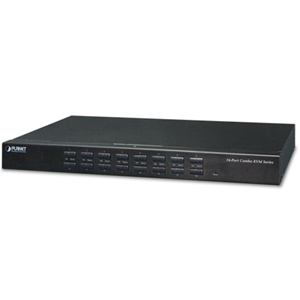

KVM-210-16 16-Port Combo KVM Switch

KVM-210-16
16-Port Combo KVM Switch

•Number of Ports: 16
•Maximum: 256 by cascading (KVM-210-16 x 16)
•PC Ports:
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 16 x HDB-15 female
•Console Ports:
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 1 x HDB-15 female

•1U rack-mount size and desktop design
•Standalone machine controls up to 8 sets of computers
•Up to 2 levels can be cascaded and up to 64 computers can be controlled
•Front panel status LEDs give a clear indication of the active computers
•Video Resolution: 2048 x 1536

•Power Requirement: 9V DC, 1A

Description

KVM-210-16
16-Port Combo KVM Switch

•Number of Ports: 16
•Maximum: 256 by cascading (KVM-210-016 x 16)
•PC Ports:
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 16 x HDB-15 female
•Console Ports:
Keyboard: PS/2 female + USB Type A female
Mouse: PS/2 female + USB Type A female
Video: 1 x HDB-15 female
•LED:
On Line: 16
Selected: 16
•Button:
Reset: 1
Select: 16
•Video Resolution: 2048 x 1536
•Housing: Metal
•Dimensions (W x D x H): 432 x 155 x 44 mm
•Weight: 2.22kg
•Power Requirement: 9V DC, 1A
•Installation: 1U rack-mountable, desktop
•PC Selection:
Port select button
Hotkeys on keyboard
OSD (on screen display)
•Scan Interval: 5~60 seconds
•Security: User password and super password
•Operating Temperature: -10 ~ 50 degrees C
•Operating Humidity: 0 ~ 90%
•Regulatory: CE, FCC
•Accessories
KVM-KC1-1.8: 1.8M USB KVM Cable with built-in PS2 to USB Converter
KVM-KC1-3: 3M USB KVM Cable with built-in PS2 to USB Converter
KVM-KC1-5: 5M USB KVM Cable with built-in PS2 to USB Converter
