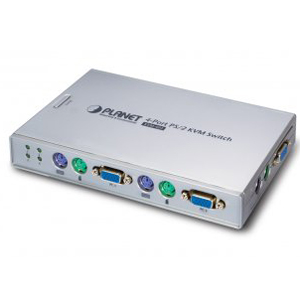

KVM-403 4-port mini KVM switch

KVM-403
4-port mini KVM switch

• 4-Ports KVM Switch in compact size design and portable.
• Allows one user Use to control 4 computers from one console
• Supports DOS, Win3.x, Win9x/NT/2000/Me/XP/2003/Vista and Windows7, Netware, Unix/Linux
• Supports SVGA, VGA and multi-sync Monitors, resolutions up to 2048×1536 ; Bandwidth: 400MHz
• Supports most of the PS/2 keyboard and mouse on the market
• Space saving and cost effective

Description

KVM-403
4-port mini KVM switch

• PC ports: 4
• Console: 1
• Max. number of controlled PCs: 4
• LED diodes: 4 x green LEDs
• KVM links:
Console4 x HDB-15 Female
8 x PS / 2 Mini-DIN-6 FemaleKlawiatura1 x PS / 2 Mini-DIN-6 FemaleMysz1 x PS / 2 Mini-DIN-6 FemaleMonitor1 x HDB-15 Female (blue)
• Switching between PC: short keypad / Button
• Keyboard emulation: PS / 2
• Mouse emulation: PS / 2
• VGA resolution: Up to 2048 x 1536
• Bandwidth: 400MHz
• Housing: Plastic
• Cable length: 1.8 m
• Dimensions (W x D x H): 180 x 108 x 22 mm
• Weight: 270.2g
• Operating conditions: 0 ~ 50 degrees C, 0 ~ 80% humidity
• Power supply: Via communication connectors
