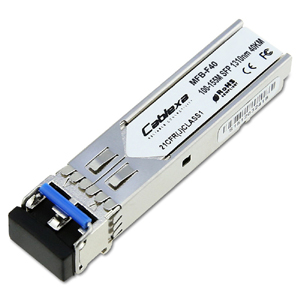

MFB-F40 100BASE-FX SFP Transceiver

MFB-F40
100BASE-FX SFP Transceiver



•Package: SFP
•PHY Type: IEEE 802.3u 100BASE-FX
•Fiber Type: Single-Mode
•Connector: LC
•Wavelength: 1310nm
•Maximum Distance: 40Km
•SFP Multi-Source Agreement compliant
•125Mbps IEEE 802.3u 100Base-FX compliant

Categories: ,

Description

MFB-F40
100BASE-FX SFP Transceiver



•Package: SFP
•PHY Type: IEEE 802.3u 100BASE-FX
•Fiber Type: Single-Mode
•Connector: LC
•Wavelength: 1310nm
•Maximum Distance: 40Km
•SFP Multi-Source Agreement compliant
•125Mbps IEEE 802.3u 100Base-FX compliant
•Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 )
•125Mbps FDDI ISO / IEC 9314-1 compliant
•Serial ID functionality support
•AC-coupled differential inputs and outputs
•Class 1 laser safety standard IEC 825 compliant
•2km link on a multimode fiber and 20km to 60km on a single mode fiber
•Low power dissipation
•0 to 60 degrees C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-FA20 / MFB-FB20
• -40 to 75 degrees C operating temperature for MFB-TFX / MF





Details:   https://www.planet.com.tw/en/product/mfb-series-transceiver
