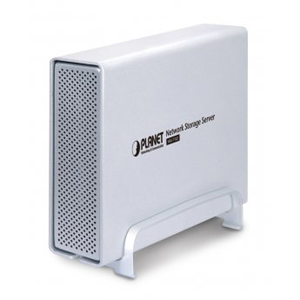

NAS-7102 Network storage server, 1 SATA disk

NAS-7102
Network storage server, 1 SATA disk

•LAN port: 1 x RJ-45 (10/100 / 1000Mbps)
•USB port: USB 2.0 (Type B) Support for USB printers
•Supported HDD disks: One 3.5 “, SATA I / II interface
•Network: IEEE 802.3, IEEE 802.3u, IEEE802.3ab
•USB functionality: Print server (LPD / LPR), external HDD
•Simultaneous users: 16
•Maximum Number of accounts: 64
•File system: FAT32
•Supported media servers: BitTorrentDLNAiTunes (MP3) PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD) Xbox 360 (JPG, MP3, WMV, XviD)

Description

NAS-7102
Network storage server, 1 SATA disk

•Model: US-7102
•LAN port: 1 x RJ-45 (10/100 / 1000Mbps)
•USB port: USB 2.0 (Type B) Support for USB printers
•Supported HDD disks: One 3.5 “, SATA I / II interface
•Network: IEEE 802.3, IEEE 802.3u, IEEE802.3ab
•USB functionality: Print server (LPD / LPR), external HDD
•protocols: TCP / IP, HTTP, FTP, SMB
•Client operating systems: Windows 2000/2003 / XP / Vista / 2008 and Windows 7Mac OS 10.2 or newer
•Simultaneous users: 16
•Maximum Number of accounts: 64
•File system: FAT32
•Supported media servers: BitTorrentDLNAiTunes (MP3) PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD) Xbox 360 (JPG, MP3, WMV, XviD)
•Access mode: Static IP, PPPoE, DHCP
•Management: Network
•Configuration: Windows software, network
•Dimensions (W x D x H): 228 x 137 x 35 mm
•Temperature: 5 ~ 40 degrees C, Humidity: 10 ~ 80%
•Power: DC 12V, 2A
•EMC / EMI certificates: FCC, CE Class B
