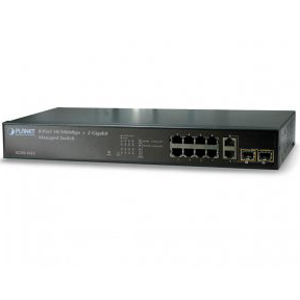

SGSD-1022P 8 ports 10 / 100Mbps + 2 shared TP / SFP ports with PoE support

Description

SGSD-1022P

8 ports 10 / 100Mbps + 2 shared TP / SFP ports with PoE support



• Wired ports: 8 x 10 / 100Base-TX RJ-45 Auto-MDI / MDI-X; 2 x 10/100 / 1000Mbps RJ-45 Auto-MDI / MDI-X All ports with PoE mixer function
  •Slots SFP / mini-GBIC: 2 x 1000Base-SX / LX / BX, shared with ports 9 and 10, compatible with 100Base-FX SFP
  •Architecture: Store-and-Forward
  •Switching matrix: 5.6Gbps / non-locking
  •Switching Capacity: 4.16Mpps
  •MAC Table of addresses: 8K entries
  •Shared Data buffe: 2 Mb
  •Flow control: Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
  •LEDs: Power, Link / Act / PoE, speed for each port
  •Dimensions (W x L x W): 330 x 155 x 43.5mm, height 1U
  •Weight: 1.59 kg
  •Power: AC 100 ~ 240V, 50 / 60Hz, Max. 130 W / 443 BTU
  •PoE power supply Standard: IEEE 802.3af Power over Ethernet / PSE
  •Power type: End-Span
  •Output current: For each port 48V DC, 350mA. max. 15.4 W
  •Total power supply: 110 W / 375BTU
  •Management : Console, Telnet, SSH, web browser, SSL, SNMPv1, v2c and v3
  •Port configuration: Port disabled / enabled; Auto-negotiation; 10/100 / 1000Mbps selection of full and half duplex mode; Flow control on / off.
  •Port statusL: Displays duplex mode for each port, connection status and flow control. Status of auto-negotiation and bus.
  •VLAN: IEEE 802.1Q Tag-based VLAN
  IEEE 802.1v Protocol based VLAN
  Q-in-Q tunneling
  GARP / GVRP for VLAN management
  Up to 255 VLAN groups, 4041 VLAN ID
  PVE support
  •Connecting ports on the bus: Support for 5 groups of 8 ports
  IEEE 802.3ad LACP
  •Certifications
  FCC Part 15 Class A, CE
  Compliance with standards
  IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-TX

IEEE 802.3z: 1000Base- SX / LX

IEEE 802.3ab: 1000Base-T

IEEE 802.3x: Flow Control and Back pressure

IEEE 802.3ad: Port trunk with LACP

IEEE 802.1d: Spanning tree protocol

IEEE 802.1w: Rapid spanning tree protocol

IEEE 802.1s: Multiple Spanning tree protocol

IEEE 802.1p: Class of service

IEEE 802.1Q: VLAN Tagging

IEEE 802.1x: Port Authentication Network Control

IEEE 802.3af: Power over Ethernet, Powered Source Equipment

• Environmental conditions:

Temperature: 0 ° C ~ 50 degrees Celsius

Relative humidity: 20% ~ 95% (without condensation)

• storage

Temperature: -40 ° C ~ 70 degrees Celsius

Relative humidity: 20% ~ 95% (without condensation)
