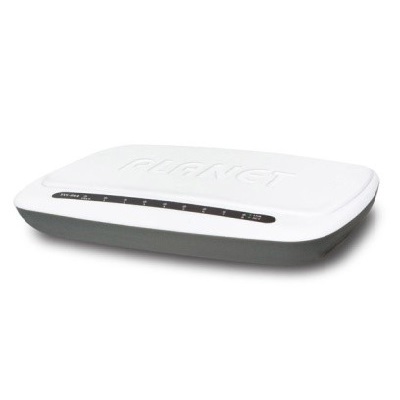

SW-804 8-Port 10/100 Base TX Desktop Ethernet Switch

  • Eight 10/100Mbps Fast Ethernet ports
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
  • Supports auto MDI/MDI-X function
Categories: , ,

Description

SW-804 :

8-Port 10/100 Base TX Desktop Ethernet Switch- Plastic

RJ-45 Interface

  • Eight 10/100Mbps Fast Ethernet ports
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
  • Supports auto MDI/MDI-X function

Switching

  • Hardware-based 10/100Mbps, half / full duplex , flow control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 1K absolute MAC addresses
  • Handles up to 1536bytes packet
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware

  • Made from plastic, desktop size and wall-mount design
  • LED indicators for system power, per port Link / Act
  • DC, 1A external power adapter
  • FCC, CE Class B compliant

Details: http://www.planet.com.tw/en/product/product.php?id=14580#ov
