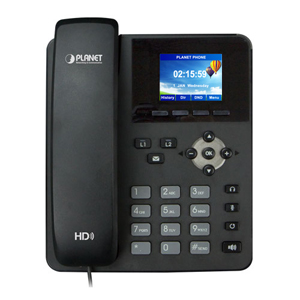

VIP-1120PT High Definition Color PoE IP Phone

•Power Requirements:
IEEE 802.3af Power over Ethernet
5V 600mA
•Operating Temperature: 0 ~ 40 degrees C
•Operating Humidity: 10 ~ 65% (non-condensing)
•Weight: 620g
•Dimensions (W x D x H): 196 x 164 x 60 mm
•Connectors:
RJ9 phone jacket x 2:
*Handset x 1
*Headphone x 1

RJ45 Ethernet jacket x 2:
*Network x 1 (802.3af PoE Class 1 enabled)
*PC x 1 (Bridged Network)

Categories: ,

Description

VIP-1120PT
High Definition Color PoE IP Phone



•Lines (Direct Numbers): 2 SIP Lines
•Physical Interfaces:
LCD x 1: 2.4-inch (320 x 240) color LCD
Keypad: 32 keys, including
* 4 soft-keys
*12 standard phone digit keys
* 5 navigation keys
* 2-line key with tri-color LED
* 5 function keys
* 3 volume control keys — Up, Down, Mute (microphone)
* 1 hands-free feature

HD hands-free speaker (0 ~ 7KHz) x 1
HD hands-free microphone (0 ~ 7KHz) x 1
HD handset (RJ9) x 1

•Protocols:
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (basic unencryption)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069

•Networking
*Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
*IP Configuration: Static, DHCP, PPPoE
*Network Access Control: 802.1x
*VPN: L2TP (basic unencryption), OpenVPN
*VLAN
*QoS
•Deployment & Maintenance:
*Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
*Web management portal
*Web-based packet dump
*Configuration backup/restore
*Auto/Manual online software upgrade
*Syslog

•Call Features:
*Call out, answer, reject
*Mute/unmute (microphone)
*Call hold, resume
*Call waiting
*Intercom
*Caller ID display
*Call forwarding (always/busy/no answer)
*Call transfer (attended/unattended)
*Call parking, pick-up (depending on server)
Redial
*Do-not-disturb (per line/per phone)
*Auto-answering (per line)
*Voice message (on server)
*Local 3-way conferencing
*Hot line

•Phone Features
*Phone accessibility control by user PIN
*Intelligent phonebook (up to 500 entries in total)
*Remote phonebook (XML/LDAP)
*Intelligent contact number matching/filtering
*Call log (300 entries in total, in/out/missed)
*Voice message waiting indication (VMWI)
*Network time synchronization
*Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, German, Dutch, Spanish, Hebrew, Polish, French, etc.

•Audio Features:
HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response)
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband codec: G.722
Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode
Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR)
Packet loss concealment (PLC)
Dynamic adaptive jitter buffer up to 300ms
DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info

•Power Requirements:
IEEE 802.3af Power over Ethernet
5V 600mA
•Operating Temperature: 0 ~ 40 degrees C
•Operating Humidity: 10 ~ 65% (non-condensing)
•Weight: 620g
•Dimensions (W x D x H): 196 x 164 x 60 mm
•Connectors:
RJ9 phone jacket x 2:
*Handset x 1
*Headphone x 1

RJ45 Ethernet jacket x 2:
*Network x 1 (802.3af PoE Class 1 enabled)
*PC x 1 (Bridged Network)





Details:  https://www.planet.com.tw/en/product/vip-1120pt
