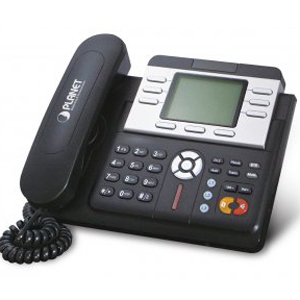

VIP-360PT IP Phone Graphic LCD

VIP-360PT
IP Phone Graphic LCD



•Model: VIP-360PT
•WAN: 1 x 10/100 Base-TX RJ-45 (802.3af)
•PC: 1 x 10/100 Base-TX RJ-45
•LCD with backlight
•Function keys:
3 x line
6 x memory
3 x programmable
Navigation
2 x volume
8 x function (book, RLS, envelope, Hold, MUTE, Transfer, Redial, Speaker)
•standards:
SIP 2.0 (RFC 3261)
RTP (RFC 2833)
STUN (RFC 3481)
SNTP (RFC 2030)
TCP / IP, UDP, HTTP, TELNET, DNS
•Sound codecs: G.711 (A-law / μ-law), G.729 A / B, G.723.1, G.722, G.726
Sound processing:
Voice detection (VAD)
Noise elimination (CNG)
Echo cancellation (AEC)
In-band, out-of-band DTMF Relay (RFC 2833) and SIP INFO
Anti-interference buffer
Security:802.1p (QoS) 802.1q (VLAN)

Categories: ,

Description

VIP-360PT
IP Phone Graphic LCD



•Model: VIP-360PT
•WAN: 1 x 10/100 Base-TX RJ-45 (802.3af)
•PC: 1 x 10/100 Base-TX RJ-45
•LCD with backlight
•Function keys:
3 x line
6 x memory
3 x programmable
Navigation
2 x volume
8 x function (book, RLS, envelope, Hold, MUTE, Transfer, Redial, Speaker)
•standards:
SIP 2.0 (RFC 3261)
RTP (RFC 2833)
STUN (RFC 3481)
SNTP (RFC 2030)
TCP / IP, UDP, HTTP, TELNET, DNS
•Sound codecs: G.711 (A-law / μ-law), G.729 A / B, G.723.1, G.722, G.726
Sound processing:
Voice detection (VAD)
Noise elimination (CNG)
Echo cancellation (AEC)
In-band, out-of-band DTMF Relay (RFC 2833) and SIP INFO
Anti-interference buffer
Security:802.1p (QoS) 802.1q (VLAN)
•Phone functions:
3-way conference
identification of the number
history (100 last calls not answered / received / made)
address book (500 entries)
Speed ​​Dial
suspension / transfer / transfer / pending
white / black list
CLIP / CLIR
Do Not Disturb (DND),
SMS
Alarm clock
XML configuration
SIP port configuration
•Internet connection type: Fixed IP, DHCP, PPPoE
•Management:
Menu on the LCD display
Network: Remote software upgrade (TFP / FTP)
•Dimensions (W x D x H): 295 x 205 x 75 mm
•Working environment: 0 ~ 45 degrees C, 0 ~ 65% humidity
•Power: 5V DC
•EMC / EMI certificates: CE, FCC
