WAP-4035 11g 54Mbps Wireless Access Point w/bridge inter-building w/ 5-Port switch Radius Server

Description

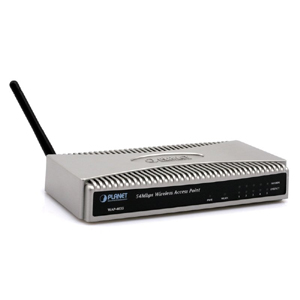

PLANET WAP-4035

11g 54Mbps Wireless Access Point w/bridge inter-building w/ 5-Port switch Radius Server



•Product: Wireless access point 54 Mbps with a built-in 5 port switch.
•Model: WAP-4035
•Standard:
IEEE 802.11g
IEEE 802.11b
•The type of signal: DSSS (Direct Sequence Spread Spectrum)
•Modulation: QPSK / BPSK / CCK / OFDM
•ports: 5 x RJ-45, 10/100 Base-TX
•Antenna: 1 x detachable dipole antenna
•Antenna connection: RSMA Male
•Strengthening the antenna: 2dBi
•Output power: 18dBm
•Tenderness:
11g @ PER <10%
54Mbps: -71.46 dBm
48Mbps: -73.1 dBm
36Mbps: -75 dBm
24Mbps: -77 dBm
18Mbps: -79.1 dBm
12Mbps: -81.1 dBm
9Mbps: -83.5 dBm
6Mbps: -85.52 dBm
11b @ PER <8%
11Mbps: -82 dBm
5.5Mbps: -85.7 dBm
2Mbps: -87 dBm
1Mbps: -91.5 dBm

•Data encryption: WPA, WPA2, WPA-PSK, 64/128-bit WEP
•Visual indicators: LED: Power, LAN, WLAN
•Capacity:
802.11b: 11 / 5.5 / 2 / 1Mbps
802.11g: 54/48/36/24/18/12/9 / 6Mbps
•Dimensions: 190 x 98 x 35 mm (W x D x H)
•Power: External 12V DC power supply
•Certifications: CE
•Compliant with the IEEE 802.11b / g (DSSS) 2.4GHz specification
•5 LAN ports RJ-45 10/100 Mbps.
•Up to 54Mbps bandwidth
•The function of automatic bandwidth limitation in the event of obstacles and disturbances
•Support for WEP / WPA / WPA2 encryption.
•Operating modes: AP / AP Client / Bridge / Repeater and WDS (Wireless Distributed System)
•It enables full integration of wireless and wired LAN Ethernet networks
•MAC address filtering function.
•Support for the RADIUS Server function
•Built-in DHCP server.
•Support for automatic MDI / MDI-X detection.
•Configuration via a Web browser.
