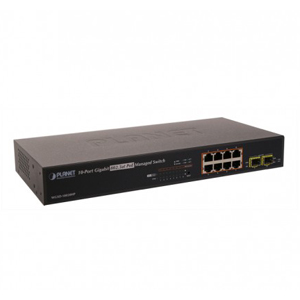

WGSD-10020HP 8-Port 10/100/1000Mbps + 2 100/1000X SFP Managed 802.3at PoE Switch (150W)
WGSD-10020HP
8-Port 10/100/1000Mbps + 2 100/1000X SFP Managed 802.3at PoE Switch (150W)
•Copper Ports: 8 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Supports 100/1000Mbps dual mode and DDM
•Console Port: 1 x RS-232 DB9 serial port (115200, 8, N, 1)
•Switch Architecture: Store-and-Forward
•Switch Fabric: 20Gbps / non-blocking
•Switch Throughput: 14.88Mpps@64Bytes
•Address Table: 8K entries, automatic source address learning and ageing
•Shared Data Buffer: 1392 kilobytes
•ESD Protection: 6KV
Description
WGSD-10020HP
8-Port 10/100/1000Mbps + 2 100/1000X SFP Managed 802.3at PoE Switch (150W)
•Copper Ports: 8 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports
•SFP/mini-GBIC Slots: 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Supports 100/1000Mbps dual mode and DDM
•Console Port: 1 x RS-232 DB9 serial port (115200, 8, N, 1)
•Switch Architecture: Store-and-Forward
•Switch Fabric: 20Gbps / non-blocking
•Switch Throughput: 14.88Mpps@64Bytes
•Address Table: 8K entries, automatic source address learning and ageing
•Shared Data Buffer: 1392 kilobytes
•ESD Protection: 6KV
•Flow Control: IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
•Jumbo Frame: 9Kbytes
•Dimensions (W x D x H): 330 x 155 x 43.5 mm, 1U high
•Weight: 1.8kg
•LED: Power, fan alert,
10/100/1000 Link / Act per RJ-45 port,
100/1000 Link / Act per SFP port,
PoE In-Use for Port-1~ 8
•Power Consumption: Max. 172.9 watts / 589.6 BTU
•Power Requirements: 100~240V AC, 50/60Hz
•PoE Standard: IEEE 802.3af PoE / 802.3at PoE+ PSE
•PoE Power Supply Type: End-span
•PoE Power Output: Per port 56V DC, 30.8 watts (max.)
•Power Pin Assignment: 1/2(+), 3/6(-)
•PoE Power Budget: 150 watts (max.)
•PoE Ability PD @ 7 Watts 8 units
•Ability PD @ 15.4 Watts 8 units
•PoE Ability PD @ 30.8 Watts 4 units
•Port Configuration: Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
•Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
•VLAN: 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
•Link Aggraegation: IEEE 802.3ad LACP / Static Trunk
5 groups of 5-Port trunk supported
•Operating: Temperature: 0 ~ 50 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
•Storage: Temperature: -20 ~ 70 degrees C
Relative Humidity: 20 ~ 95% (non-condensing)
Details: https://planetechusa.com/wgsd-10020hp-8-port-10-100-1000mbps-2-100-1000x-sfp-managed-802-3at-poe-switch/
