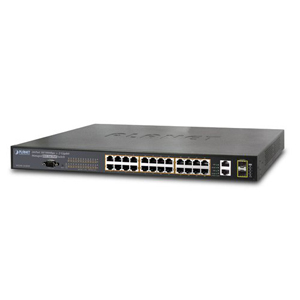

WGSW-2620HP Managed 24-Port 802.3at high power PoE 10/100 Switch + 2-Port Gigabit SFP (360W)

WGSW-2620HP

Managed 24-Port 802.3at high power PoE 10/100 Switch + 2-Port Gigabit SFP (360W)

•Ports: 24 10/100TX + 2 10/100/1000TX Shared 2 1000X
•Type: Managed
•PoE Ports: 24
•Standard: 802.3at/af
•Total PoE Budget: 360 Watts
•Operating Temp.: 0-50°C
•Power Consumption: System: 29 Watts /98 BTU
•Throughput: 6.547Mpps @ 64 Bytes

Description

WGSW-2620HP

Managed 24-Port 802.3at high power PoE 10/100 Switch + 2-Port Gigabit SFP (360W)

•Subtype : Gigabit Ethernet
•Ports: 24 x 10/100 (PoE) + 2 x 10/100/1000 + 2 x Gigabit SFP
•PoE Budget: 360 W
•Switch Fabric: 8.8Gbps
•Performance Throughput: 6.547 Mpps
•MAC Address Table Size: 8K entries
•Power Over Ethernet (PoE): PoE
•Status Indicators: Power, alert, PoE, link/activity, fan
•Encryption Algorithm: SSL
•Routing Protocol: IGMPv2, IGMP, IGMPv3
•Nominal Voltage: AC 120/230 V
•Frequency Required 50/60 Hz
•Power Consumption Operational 360 Watt
•Humidity Range Storage 10 – 95% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 95% (non-condensing)
•DIMENSIONS & WEIGHT:Width 17.3 in X Depth 11.8 in X Height 1.8 in ,Weight 10.14 lbs
•CAPACITY Type: ACL rules, dynamic VLAN entries, tagged VLANs, virtual interfaces (VLANs)
Value : 128, 200, 255, 4041
