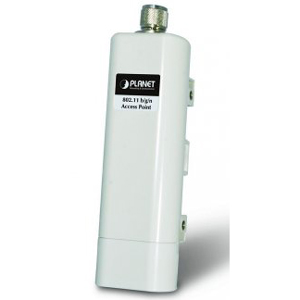

WNAP-6300 802.11b/g/n Wireless LAN Outdoor AP

WNAP-6300
802.11b/g/n Wireless LAN Outdoor AP



•standards: IEEE 802.11b / g / nIEEE 802.3 / u
•interfaces: Wireless IEEE802.11b / g / nLAN: 1x 10 / 100Base-TX, Auto-MDI / MDIX
•Antenna: Attached directional 8dBi (Vertical-Pol) * level: 113 degrees * perpendicular: 39 degrees type N connector
•Capacity: 802.11b: up to 11Mbps802.11g: up to 54Mbps 802.11n: up to 150Mbps
•Modulation: OFDM, BPSK, QPSK, CCK, DQPSK, DBPSK
•Band: IEEE 802.11b / g / n HT20 ISM Band-USA (FCC): 2.412 GHz ~ 2.462 GHz (CH1 ~ CH11) – Europe (ETSI): 2.412 GHz ~ 2.472 GHz (CH1 ~ CH13) – Japan (TELEC): 2.412 GHz ~ 2.472 GHz (CH1 ~ CH13) IEEE 802.11g / n HT40 ISM Band-USA (FCC): 2.422GHz ~ 2.452 GHz (CH3 ~ CH9) – Europe (ETSI): 2.422 GHz ~ 2.462 GHz (CH3 ~ CH11) – Japan (TELEC): 2.422 GHz ~ 2.462 GHz (CH3 ~ CH11)
•Channels: 1 ~ 11 channels (North America) 1 ~ 13 channels (General Europe) 1 ~ 14 channels (Japan)
•Output power: 802.11b: 26 ± 1.5dBm802.11g: 26 ± 1.5dBm (6-24Mbps) 25 ± 1.5dBm (36-48Mbps) 24 ± 1.5dBm (54Mbps) 802.11n: HT20: 22/23/24/25/26 ± 1.5dBm (MCS7 / 6/5/4 / 0-3) HT40: 21/22/23/25/26 ± 1.5dBm (MCS7 / 6/5/4 / 0-3)
•Receiver sensitivity: IEEE 802.11b: 1Mbps ≦ -93dBm, 11Mbps ≦ -88dBmIEEE 802.11g: 6Mbps ≦ -88dBm, 54Mbps ≦ -73dBmIEEE 802.11n: – HT 20 MCS0 ≦ -88dBm, MCS7 ≦ -70dBm-HT 40 MCS0 ≦ -84dBm, MCS7 ≦ -67dBm
•Security: 64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Categories: ,

Description

WNAP-6300
802.11b/g/n Wireless LAN Outdoor AP



•Compliant with the IEEE 802.11b / g / n standard
•The robust IP-55 enclosure guarantees full protection against adverse weather conditions
•A wide range of working temperatures
•Output power regulation up to 400mW
•Bandwidth up to 150Mbps in mode n
•Support for the Power over Ethernet standard
•Antenna connector type N
•Multiple access modes: AP, Wireless client, CPE (WIPS) client, WDS, AP + WDS
•Encryption support 64/128/152-bit WEP and 802.1X, WPA, WPA2, WPA & WPA2, WPA-PSK, WPA2-PSK and WPA-PSK & WPA2-PSK authorization
•Firewall with IP / port filtering
•Configuration via network and SNMP

•standards: IEEE 802.11b / g / nIEEE 802.3 / u
•interfaces: Wireless IEEE802.11b / g / nLAN: 1x 10 / 100Base-TX, Auto-MDI / MDIX
•Antenna: Attached directional 8dBi (Vertical-Pol) * level: 113 degrees * perpendicular: 39 degrees type N connector
•Capacity: 802.11b: up to 11Mbps802.11g: up to 54Mbps 802.11n: up to 150Mbps
•Modulation: OFDM, BPSK, QPSK, CCK, DQPSK, DBPSK
•Band: IEEE 802.11b / g / n HT20 ISM Band-USA (FCC): 2.412 GHz ~ 2.462 GHz (CH1 ~ CH11) – Europe (ETSI): 2.412 GHz ~ 2.472 GHz (CH1 ~ CH13) – Japan (TELEC): 2.412 GHz ~ 2.472 GHz (CH1 ~ CH13) IEEE 802.11g / n HT40 ISM Band-USA (FCC): 2.422GHz ~ 2.452 GHz (CH3 ~ CH9) – Europe (ETSI): 2.422 GHz ~ 2.462 GHz (CH3 ~ CH11) – Japan (TELEC): 2.422 GHz ~ 2.462 GHz (CH3 ~ CH11)
•Channels: 1 ~ 11 channels (North America) 1 ~ 13 channels (General Europe) 1 ~ 14 channels (Japan)
•Output power: 802.11b: 26 ± 1.5dBm802.11g: 26 ± 1.5dBm (6-24Mbps) 25 ± 1.5dBm (36-48Mbps) 24 ± 1.5dBm (54Mbps) 802.11n: HT20: 22/23/24/25/26 ± 1.5dBm (MCS7 / 6/5/4 / 0-3) HT40: 21/22/23/25/26 ± 1.5dBm (MCS7 / 6/5/4 / 0-3)
•Receiver sensitivity: IEEE 802.11b: 1Mbps ≦ -93dBm, 11Mbps ≦ -88dBmIEEE 802.11g: 6Mbps ≦ -88dBm, 54Mbps ≦ -73dBmIEEE 802.11n: – HT 20 MCS0 ≦ -88dBm, MCS7 ≦ -70dBm-HT 40 MCS0 ≦ -84dBm, MCS7 ≦ -67dBm
•Security: 64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK





Details :      http://planet.pl/produkty/produkty-archiwalne/wnap-6300
