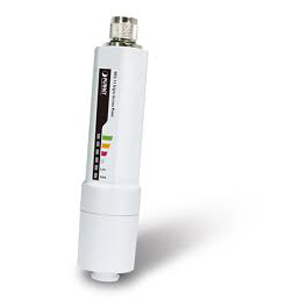

WNAP-6308 Wireless 802.11n Outdoor Access Point 2.4GHz

Description

WNAP-6308

Wireless 802.11n Outdoor Access Point 2.4GHz



•Hardware Specifications:
IEEE 802.11b/g/n Wireless LAN
IEEE 802.11i Wireless Security
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control
•Memory:
32 Mbytes DDR SDRAM
8 Mbytes Flash
•Interface:
Wireless IEEE 802.11b/g/n, 1T1R
LAN / WAsssN: 1 x 10/100Base-TX, Auto-MDI / MDIX
•Antenna Built-in N-type (Male) Antenna Connector
Wireless RF Specifications
•Wireless Technology :
IEEE 802.11b/g
IEEE 802.11n
•Data Rate:
IEEE 802.11b: 11, 5.5, 2 and 1Mbps
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
IEEE 802.11n (20MHz): up to 72Mbps
IEEE 802.11n (40MHz): up to 150Mbps
•Media Access Control: CSMA / CA
•Modulation: Transmission/Emission Type: DSSS / OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM,
DBPSK, DQPSK, CCK
•Frequency Band: 2.412GHz ~ 2.484GHz
•Operating Channel:
America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
•RF Output Power (Max.):
IEEE 802.11b/g: 23 ± 1.5dBm
IEEE 802.11n: 23 ± 1.5dBm
•Receiver Sensitivity:
IEEE 802.11b/g: -95dBm
IEEE 802.11n: -91dBm
•Output Power Control: 3~23dBm
•LAN: Built-in DHCP Server supporting static IP address distributing
Supports 802.1d STP (Spanning Tree)
•WAN:
■ Static IP
■ Dynamic IP
■ PPPoE
■ PPTP
■ L2TP
■ IPSec
•Operating Mode:
■ Bridge
■ Gateway
■ WISP
•Firewall:
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT Server supporting Virtual Server and DMZ
Built-in Firewall with Port / IP Address / MAC / URL Filtering
•Wireless Mode:
■ AP
■ Client
■ WDS PTP
■ WDS PTMP
■ WDS Repeater (AP+WDS)
•Channel Width: 20MHz / 40MHz
•Wireless Isolation: Enables isolation of each connected wireless client from communicating with each other mutually
•Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
•Wireless Security:
Wireless LAN ACL (Access Control List) Filtering
Wireless MAC Address Filtering
Supports WPS (Wi-Fi Protected Setup )
Enable / Disable SSID Broadcast
•Multiple SSID: Up to 2
•Max. Wireless Client: 20
•Max. WDS AP: 8
•Max. Wired Client: 30
•WMM (Wi-Fi Multimedia): Yes
•QoS (Quality of Service): Yes
•NTP(Network Time Management): Yes
•Management: Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP
•Diagnostic Tool: System Log, Ping Watchdog
•IP Rate: IP55
•Material: Outdoor UV Stabilized Enclosure
•Dimensions (Φ x H): 45 x 169 mm
•Weight: 128g
•Power Requirements:
LAN: 12~24V DC, Passive PoE
Pin 4,5 V DC+
Pin 7,8 V DC-
•Power Consumption: 1.5W
