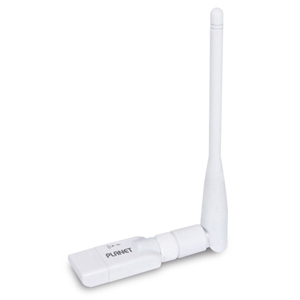

WNL-U554A 802.11n Wireless USB Adapter

WNL-U554A
802.11n Wireless USB Adapter



•Interface: USB 2.0, Type-A
•Antenna: 1 x Detachable RP-SMA connector with 3dBi Antenna (1T1R)
•LED: 1 x Link / Active (Blue)
•Operation Voltage: 5V DC, power source from USB port
•Dimension (W x D x H): 45 x 18 x 10 mm
•Weight: 15g
•Standards Conformance:
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
•RF Modulation: DBPSK, DQPSK, CCK, OFDM
•Frequency Band: 2412MHz ~ 2483.5MHz
•Data Rate
802.11n(20MHz): up to 72 Mbps
(40MHz): up to 150 Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
•Wireless Transmit Power: ≦20 dBm (EIRP)
•Receiver Sensitivity:
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER

Categories: ,

Description

WNL-U554A
802.11n Wireless USB Adapter



•Interface: USB 2.0, Type-A
•Antenna: 1 x Detachable RP-SMA connector with 3dBi Antenna (1T1R)
•LED: 1 x Link / Active (Blue)
•Operation Voltage: 5V DC, power source from USB port
•Dimension (W x D x H): 45 x 18 x 10 mm
•Weight: 15g
•Standards Conformance:
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
•RF Modulation: DBPSK, DQPSK, CCK, OFDM
•Frequency Band: 2412MHz ~ 2483.5MHz
•Data Rate
802.11n(20MHz): up to 72 Mbps
(40MHz): up to 150 Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
•Wireless Transmit Power: ≦20 dBm (EIRP)
•Receiver Sensitivity:
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
•Operating Mode: Ad-Hoc, Infrastructure, Soft AP
•Encryption Security:
WEP 64 / 128-bit
WPA-PSK / WPA2-PSK (TKIP/AES)
WPA / WPA2 (TKIP/AES)
•Wireless Advanced:
Supports 802.11e WMM (Wi-Fi Multimedia)
Supports WPS (Wi-Fi Protected Setup) by software
•Management: The utility included in the package or Windows XP Zero Configuration utility
•Operating Systems:
Windows 2000/XP (x86/x64) / VISTA (x86/x64) / Win7 (x86/x64)
Linux Kernel 2.4 /2.6
Macintosh 10.4/10.5/10.6
•Temperature:
Operating : 0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C
•Humidity:
Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 95% (Non-Condensing)
