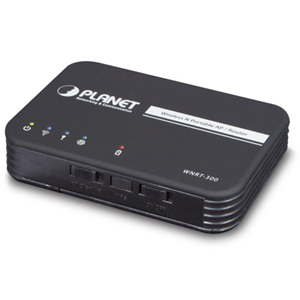

WNRT-300 150Mbps 802.11n Wireless Portable AP / Router

WNRT-300
150Mbps 802.11n Wireless Portable AP / Router

•Interface: LAN / WAN : 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port

•Data Transmission Rates:
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
•Transmission Distance:
Indoor up to 100m
Outdoor up to 300m (Depends on the environment conditions)
•Antenna:
Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional
•Battery: Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh)
•Power Requirement: DC 5V , 0.4A maximum, connected through mini-USB connector
•Power Adapter:
AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current
•Standard Accessory: Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1
•Standard: Compliance with IEEE 802.11b/g/n
•Frequency Band: 2.4 ~ 2.4835GHz
•Extend Frequency: DSSS
•Modulation Type: DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

Description

WNRT-300
150Mbps 802.11n Wireless Portable AP / Router

•Interface: LAN / WAN : 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
•Antenna:
Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional
•Button / Switch:
Front panel (from left to right):
– Mode Selection Switch (Router / Client / AP)
– WPS Button
– Power On / Off Switch

Rear panel:
– Reset button
* Push for above 5 seconds to reset to factory default settings
•LED Indicators: PWR, WLAN, WAN/LAN, WPS, CHG
•Material: Plastic
•Dimension (W x D x H): 88 x 62 x 18 mm
•Weight:
With battery: 80g
Without battery: 58g
•Battery: Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh)
•Power Requirement: DC 5V , 0.4A maximum, connected through mini-USB connector
•Power Adapter:
AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current
•Standard Accessory: Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1
•Standard: Compliance with IEEE 802.11b/g/n
•Frequency Band: 2.4 ~ 2.4835GHz
•Extend Frequency: DSSS
•Modulation Type: DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
•Data Transmission Rates:
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
•Transmission Distance:
Indoor up to 100m
Outdoor up to 300m (Depends on the environment conditions)
•Channel:
America/ FCC: 2.412 ~ 2.462GHz (11 Channels)
Europe/ ETSI: 2.412 ~ 2.472GHz (13 Channels)
Japan/ TELEC: 2.412 ~ 2.484GHz (14 Channels)
•Max. RF Power 20 dBm (EIRP)
•Receive Sensitivity:
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
•Operation Mode:
■ AP
■ Router
■ Client
(Switchable by hardware)
•Wireless Mode: AP, WDS, Repeater (WDS+AP), Universal Repeater (AP + Client)
•Encryption Security:
WEP (64/128-bit) encryption security
WPA-Enterprise / WPA2-Enterprise (TKIP/AES)
WPA-Personal / WPA2-Personal (TKIP/AES)
802.1x Authentication
•Wireless Security:
Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Multiple SSID up to 5 wireless groups, each mapped to a separate 802.1p/q tagged VLAN
Enable / Disable SSID Broadcast
•Temperature:
Operating: 0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C
•Humidity:
Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)
