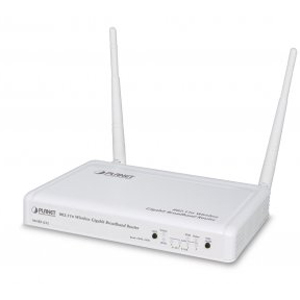

WNRT-632 802.11n Wireless Gigabit Broadband Router

WNRT-632

802.11n Wireless Gigabit Broadband Router

•WAN: 1 x 10/100 / 1000Base-T, Auto-MDI / MDI-X
•LAN ports: 4 x 10/100 / 1000Base-T, Auto-MDI / MDI-X
•Antennas: 2 x 3dBi detachable
•Data encryption: 64 bit / 128 bit WEP, WPA-PSK, WPA2-AES, WPA, WPA2
•Band: 2.4GHz – 2.484GHz

•Power: 12V DC, 1A

Description

WNRT-632

802.11n Wireless Gigabit Broadband Router

•Power: 12V DC, 1A

• Compliant with 802.11b / 802.11g / 802.11n standard
• Supports Wi-Fi Protected Setup (WPS)
• Farther coverage, less dead space and higher throughput with 802.11n technology
• Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x) and functions
for high level of security
• Supports DHCP Server
• Dynamic / Static / PPPoE / PPTP / L2TP IP allocation
•The type of signal:
11b mode: DSSS
11g mode: OFDM
11n mode: OFDM, MIMO
•Modulation:
11b mode: CCK, DQPSK, DBPSK
11g mode: 64 QAM, 16 QAM, QPSK, BPSK
11n mode: 64 QAM, 16 QAM, QPSK, BPSK
•Capacity:
IEEE 802.11b: 1/2 / 5.5 / 11Mbps
IEEE 802.11g: 6/9/12/18/24/36/48 / 54Mbps
IEEE 802.11n: up to 300Mbps
•Output power:
11b mode: 17dBm
11g mode: 14dBm
11n mode: 14dBm
•Receiver sensitivity:
802.11n (20MHZ): Range -72dBm ~ 87dBm
802.11n (40MHZ): Range -68dBm ~ 87dBm
802.11g: Range -72dBm ~ 91dBm
Error rate = 10% at room temperature
802.11b: Range -89dBm ~ 91dBm
Error rate = 8% at room temperature
•Temperature:
Work: 0 ~ 40 degrees C
Storage: -10 ~ 70 degrees Celsius
•Humidity:
Work: 10 ~ 90% without condensation
Storage: 0 ~ 95% without condensation
•Dimensions (W x D x H): 186 x 111 x 27 mm
•Weight: 270g
